Nomos Glashütte

Nomos DUW 3001

Swiss lever · introduced 2015
Nomos DUW 3001 movement

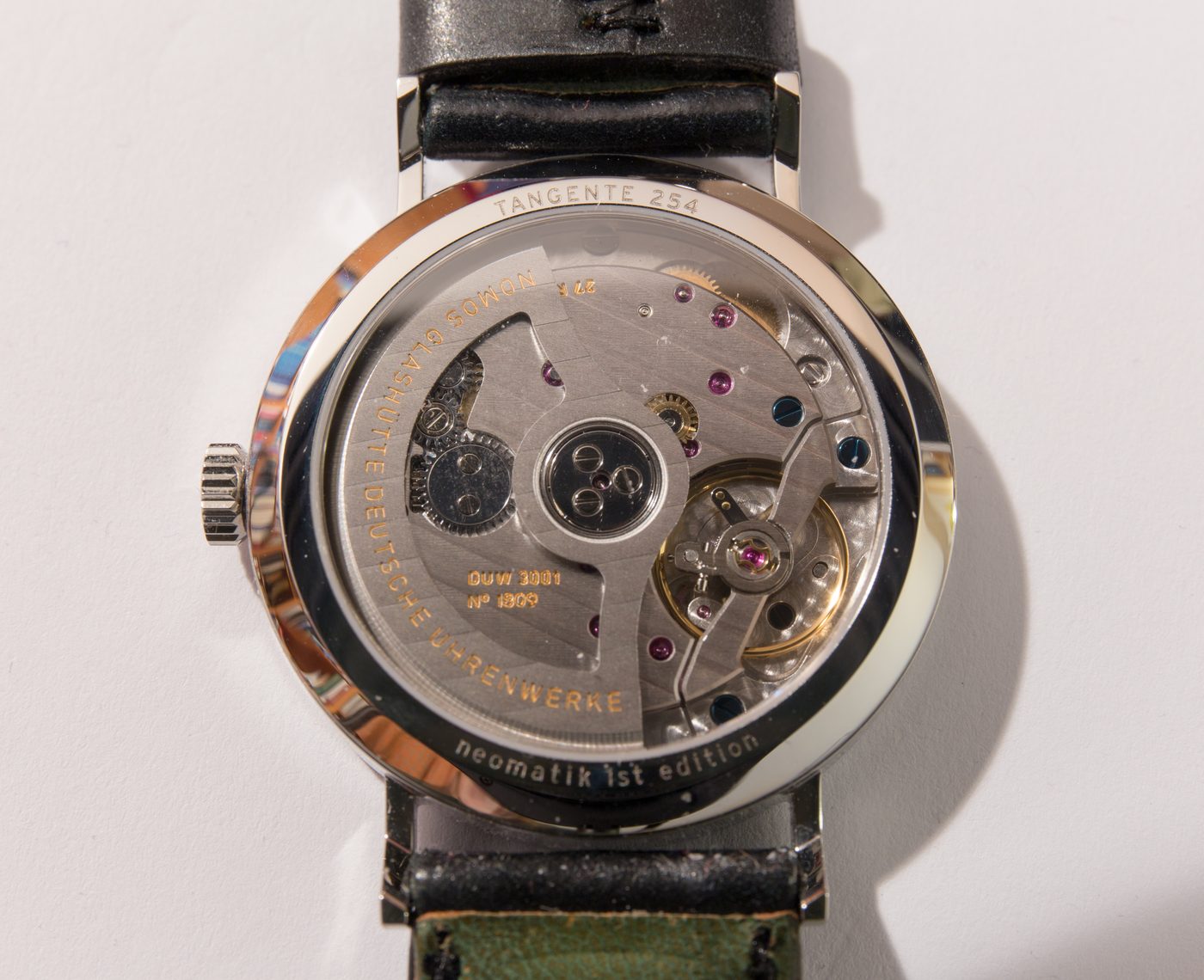

Photo by GodeNehler (CC BY-SA 4.0), via Wikimedia Commons · CC-BY-SA-4.0The caliber is engraved DUW 3001 No 1809 in gold on the plate, under a caseback marked TANGENTE 254 and neomatik 1st edition. Identification comes off the movement itself rather than off the file description.
Beat rate
21,600 vph
Power reserve
42h
Jewels
27
Introduced
2015
Escapement
Swiss lever

The DUW 3001 is Nomos's first fully in-house movement, including its proprietary Swing System escapement replacing the licensed Glashütte lever. At 3.2 mm height it is among the thinnest automatic calibers in German watchmaking. The Swing System reduces friction compared to a standard lever and is the technical anchor of Nomos's independence claim.

Specifications

Beats per hour
21,600
Jewels
27
Power reserve
42h
Diameter
28.8mm
Height
3.2mm
Escapement
Swiss lever
Introduced
2015
Finishing
Fine
Service interval
5 years
Service cost tier
Mid-range

Known service issues

  • Swing System requires Nomos-trained technicians for correct pallet adjustment; do not service with standard lever escapement tools
  • The first Neomatik examples from 2015 to 2016 had a higher than expected call-back rate for regulator adjustment; current production is reliable and the issue has not recurred

Notable in

  • Nomos Metro Neomatik 39
  • Nomos Tangente Neomatik 41 Update
  • Nomos Orion Neomatik 39
